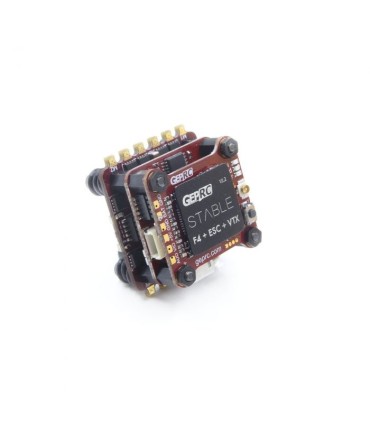

Mini tower F4 GEPRC

Caractéristiques techniques:

– Dimensions: 25*25mm*20mm (length * width * height)
– Mounting Hole 20*20mm, suitable for most racks.
– MPU: MPU6000-SP
– CPU: STM32F405, dual 8K.
– BLHeli_S firmware，Support(Oneshot 125/42 and Dshot 150/300/600)
– VTX have 48 channel, The power of VTX can choice OFF/25/100/200mW
– Tension d'alimentation: 2-4S Lipo
– Supporte DSMX , SBUS and PPM Receiver

Flight Controller (Omnibus F4 Flight Controller )

Firmware: betaflight 3.2.1（OMNIBUSF4SD）

OSD Firmware: Betaflight OSD

Video Camera Voltage:5V only

Support Voltage monitor, buzzer and LED

Support DSMX , SBUS and PPM Receiver

Board Size:25×25mm

Weight:2.3g

ESC 4 IN 1 (BLHelis 20A)

PDB:Integrated

Battery Monitoring:Integrated

FC Power:Integrated

Input Voltage:2-4S(12A)

Con. Current: 20A

Peak Current: 30A ( 5s)

Oneshot 125/42 : YES

Dshot 150/300/600:YES

BlheliSuite Configurable:YES

Firmware Version:BLHeli_S/Dshot 150/300/600  16.6(G_H_30/L_H_0)

Board Size:27×27mm

Weight:3.3g(20A)

VTX(GEP-VTX58200-M)

VTX Power:OFF/25/100/200mW

CH:48CH

VTX Power input:2-6S (using VTX layer alone)

Video Camera Voltage: 5V

Features：

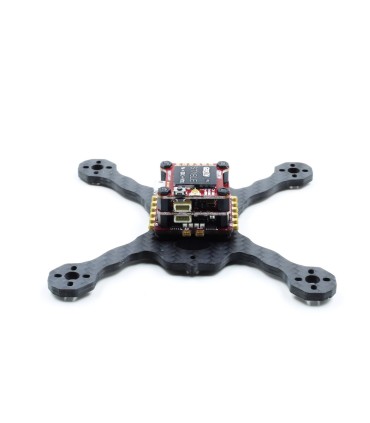

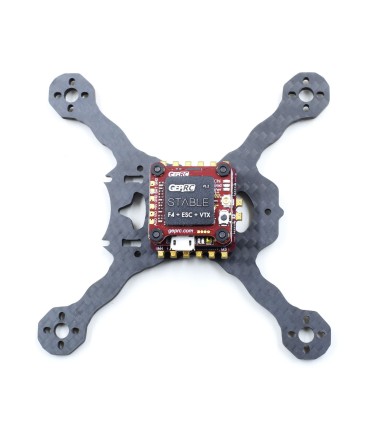

Adopt the current popular tower structure solution, simple installation.

Fast installation, and very stable.

Reasonable structure size: 25*25mm*20mm (length * width * height)

Mounting Hole 20*20mm, suitable for most racks.

MPU: MPU6000-SP

CPU: STM32F405, dual 8K.

BLHeli_S firmware，Support(Oneshot 125/42 and Dshot 150/300/600)

VTX have 48 channel, The power of VTX can choice OFF/25/100/200mW

Input Voltage: 2-4S Lipo

Support DSMX , SBUS and PPM Receiver

Package Included：

1x Omnibus F4 Flight Controller
