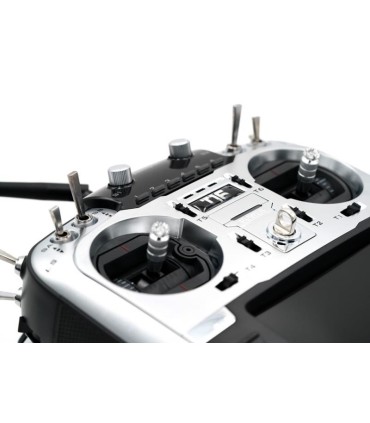

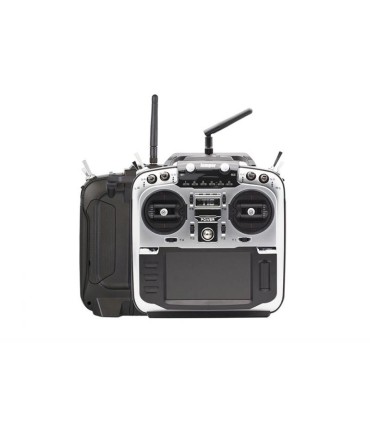

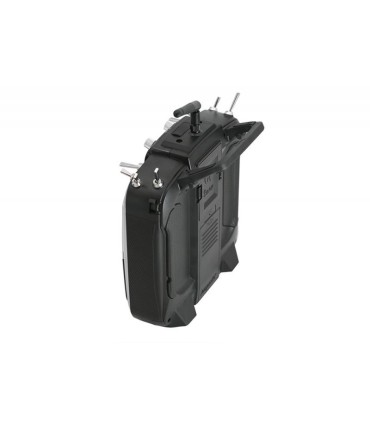

Remote control Jumper T16 PRO hall V2

The remote control T16 Pro Hall V2, in addition to presenting an attractive rate, has been subject to numerous tests of comfort and functionality. With all the feedback on the previous products of the brand, as well as the feedback from the community of dronistes on what they expected of a radio remote control, everything has been included in the T16.

The designer Jumper continues to improve its range of remote controls but they all share the same principle : they are mutiprotocoles. In other words, you can perfectly fly drones with radio receivers of different brands and different models.

Technical characteristics:

• Brand : JUMPER
• Name : T16 Pro Hall V2
• Mode : mode 2
• Size : 180 x 190 x 58mm
• Weight : 888g
• Voltage : DC7-8.4 V
• Current : 350mah (no CRSF)
• Channel : 16 channels
• MCU STM32F429BIT6
• Color display is readable in outdoor, industrial-quality 4.3-inch (480 x 272)
• Compatible with JumperTX (a fork independent of OpenTX)
• Button wheel for menu
• Type of gimbal: HALL SENSOR
• Charge USB-C

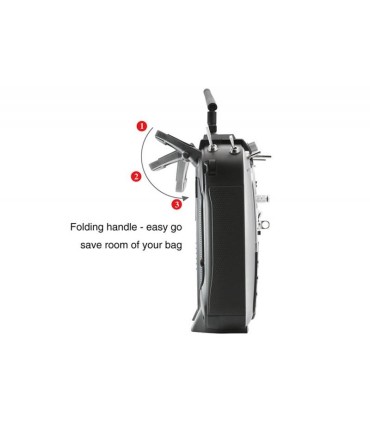

• Handle folding
• Transmission Module, multi-protocol internal with support for TBS CRSF
• Removable battery
• Support of telemetry
• Memory 16M (can be extended by Micro SD card)
• Voice function
• Callback function of vibration
• Bay module JR standard
• Mode buttons 6 flights (for flight controllers APM and Pixhawk)
• Status display with bicolor LED

Module:

• Voltage : 6-9V
• Operating current : <= 100ma
• Operating frequency: band 2.4 G ISM
• RF power: + 22DBM
• Chip of the main control : STM32F103CBT6 (128K ROM, 20K RAM)
• Compatibility of the module bays: FRSky, Jr, and other dimensions: 64 x 49 x 33 (without antenna)
• Net weight: 42g (antenna included)
• Software compatibility : Suitable for radios using OpenTX or er9x / ersky9x
• Update firmware : Yes, via USB
• Data-chip RF
• Cypress Semiconductor CYRF6936 : DSM / DSMX, Walkera Devo
• Texas Instruments CC2500: FrSky, Futaba SFHSS
• Amiccom A7105 : Checked, FlySky, FlySky AFHDS2A
• Nordic Semiconductor NRF24L01 : HiSky, Syma, ASSAN and most of the other chinese models

Content of the product:

• Remote Control Jumper T16 Pro Hall V2
• Module multi-Protocol integrated in the radio
• Strap battery
• USB cable
