Bundle R9M 2019 and R9 Slim+ OTA Super 8 and T antenna EU FRSKY

Bundle R9M 2019 and R9 Slim+ OTA Super 8 and T antenna EU FRSKY

Read moreShow less
€91.90 (tax incl.)
Rupture de stock
Notify me when available
Love0
Add to compare0
Add to wishlist
Description

The FrSky R9 and R9M radio control system is the first FrSky long-range system operating at the frequency of 900 MHz. The R9M module offers 4 switchable RF power outputs so you can choose the appropriate power for different flight situations. Compared to other FrSky 2.4GHz long range receiver like the L9R, the R9 receiver has a longer operating range, up to 10km and more. In addition, the R9 is also a redundant receiver that can connect to another receiver to ensure the safety of your model.

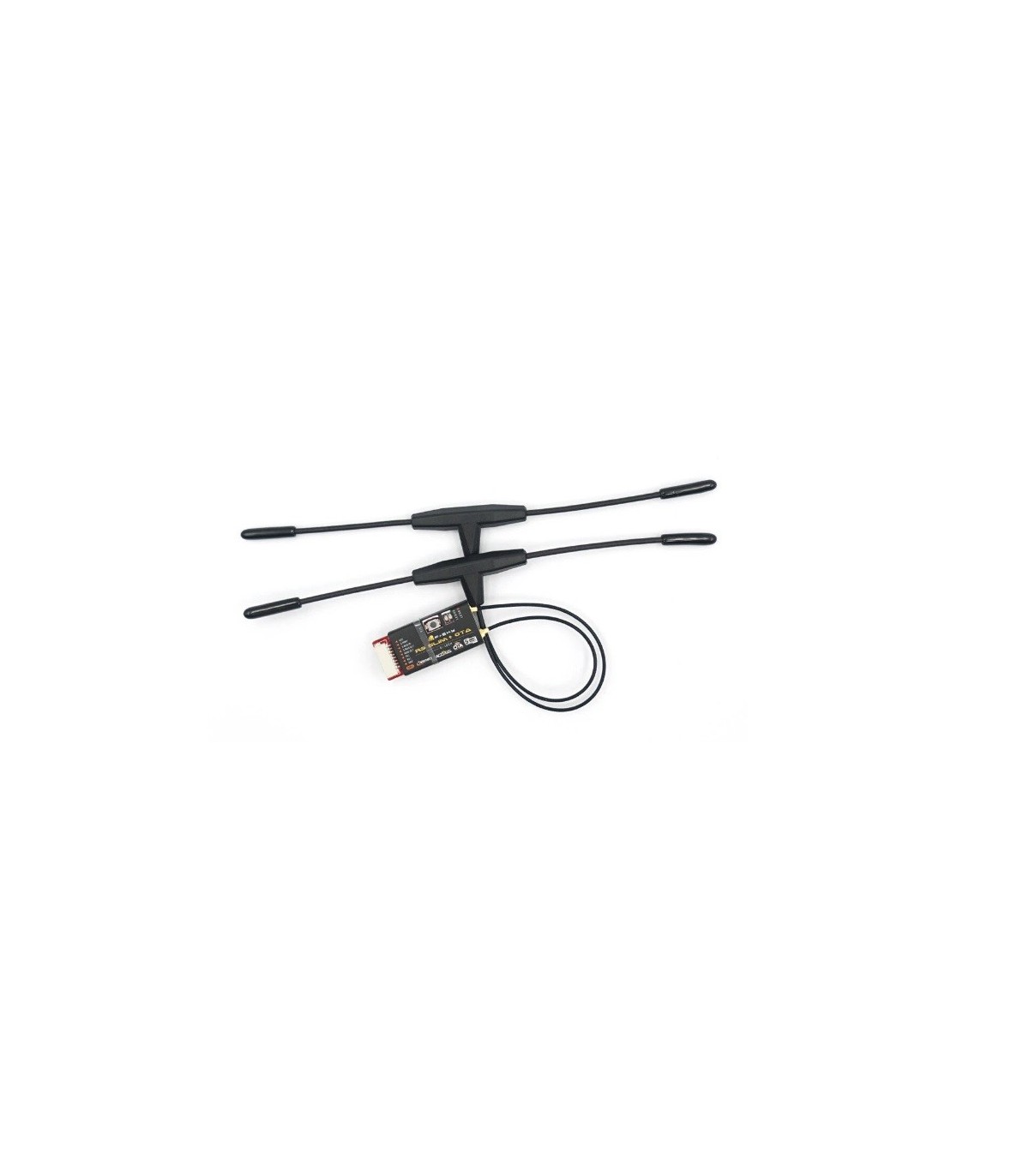

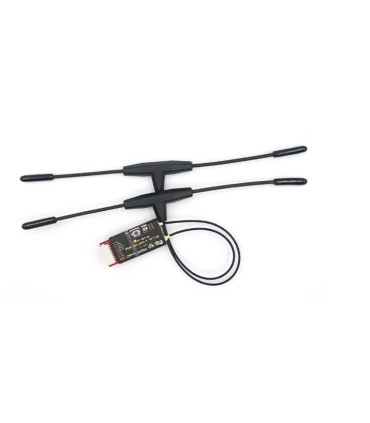

The R9 Slim+ OTA is designed with two antennas to enhance signal strength. Compact in design, it also has 6 PWM outputs and this long-range receiver offering the possibility of working with more external devices by integrating the SBUS and S.Port inverted outputs.

The Slim + OTA 900 MHz R9 receiver uses the ACCESS protocol and supports wireless firmware updates via radio link, which makes linking to receivers even simpler. It also gives the opportunity to check the current version of the receiver firmware.

Technical specifications:

R9 Slim + OTA Receiver:

-Dimension: 32*13.5*5mm(L×W×H)

-Weight: 4.3 g (with antennas)

-LBT version: 6/16CH (telemetry)/6/16CH (no telemetry)

-With RSSI output: Analog 0~3.3V

-Working voltage range: DC 3.5V~12.6V (1~3s Li-Battery)

-Working current: 100mA at 5V

-Operating range: up to 10km or more

-Compatibility: R9M Lite/R9M/R9M 2019 with ACCST firmware,

-R9M Lite / R9M Lite Pro / R9M 2019 with firmware ACCESS

Module R9M 2019 900 MHz:

-Compatibility: R9 series

-Input voltage range: 6.5V-13V

-External power supply: 6.5V~13V

-Telemetry interface: Smart Port

-Upgrade interface: Smart Port

-Modulations: PXX or CPPM (detected automatically)

-Operating mode 900MHz/868MHz

-Long range RC system, low latency and high precision

-4 RF power optional (non-EU version)

-Telemetry mode (25mW) / non-telemetry mode (200mW/ 500mW) (EU Version)

-RF Power (Flex): 10mW/100mW/500mW/1W (telemetry supported for all levels)

-Smart Port enabled and support telemetry data transmission

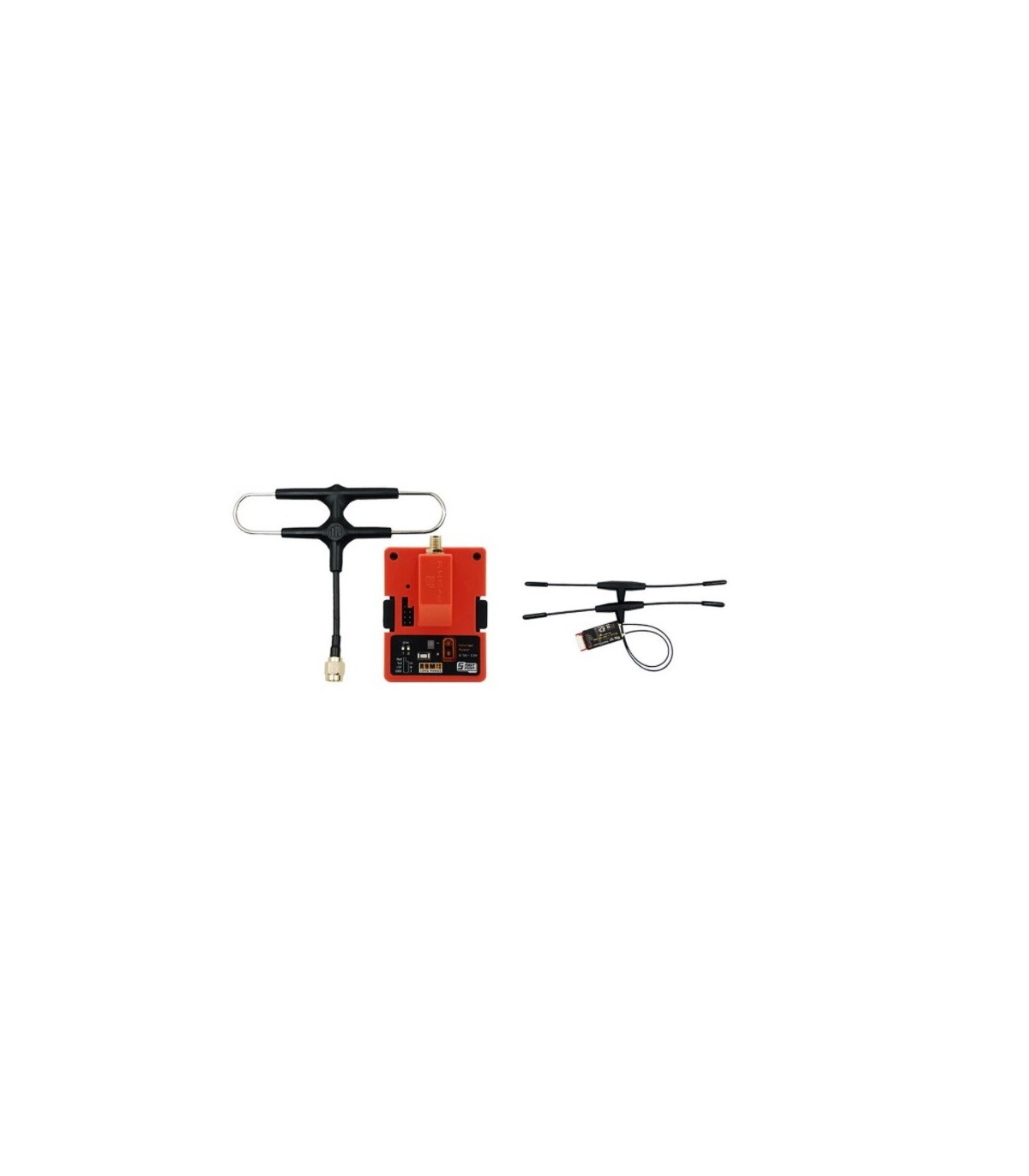

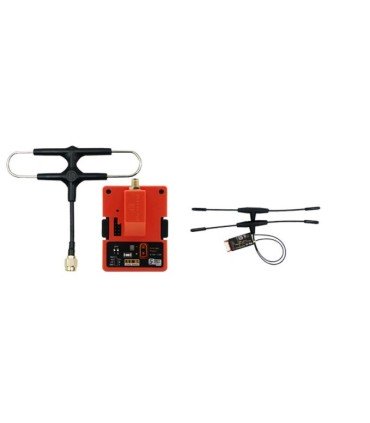

Product content:


1 x 2019 R9M module with Super 8 antenna mounted

1 x R9 Slim+OTA receiver with Ipex1 T antenna mounted

Read moreShow less
Product Details
BUNDLER9MR9SPLUS
