DJI Agras T20

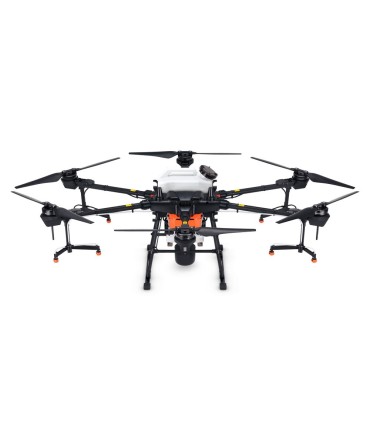

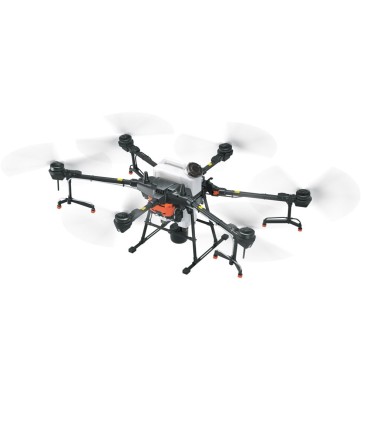

The DJI Agras T20 drone is equipped with a 20 L tank and allows products to be dispersed within a radius of 7 meters, making crop processing operations more efficient. In particular, you can treat up to 12 hectares per hour. The spraying system is perfectly configurable on a good number of characteristics, allowing users a wide range of customization. The drone includes RTK technology (centimeter positioning system) and allows to record strategic points to the nearest centimeter and thus ensure the proper circulation of the drones over crops.

The Agras T20 incorporates an omnidirectional digital radar and thus allows 360 ° obstacle detection. Thus, the drone can bypass obstacles encountered on the way, regardless of the terrain overflown, to guarantee the integrity of the equipment. The drone is very resistant to dust and water, allowing it to be operated whatever the time of day or weather conditions. As such, the drone and its main elements display the IP67 protection rating. There is an FPV camera on the drone to guide the operator and two projectors to illuminate the area to be treated, at night mission.

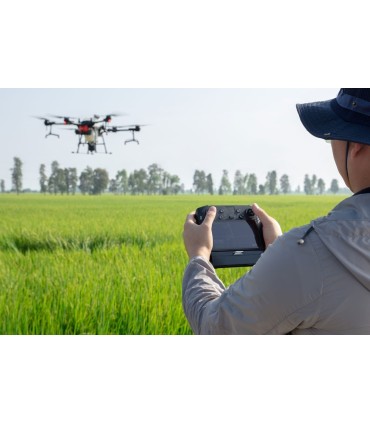

The performance of this Agras T20 is made possible thanks to a new radio control named AGRAS Smart Controller 2.0. It works in conjunction with the DJI Agras mobile app, which provides a smooth and intuitive user interface. This new radio control has a bright 5.5-inch display, even in direct sunlight. It is possible to power it with two WB37 type batteries.

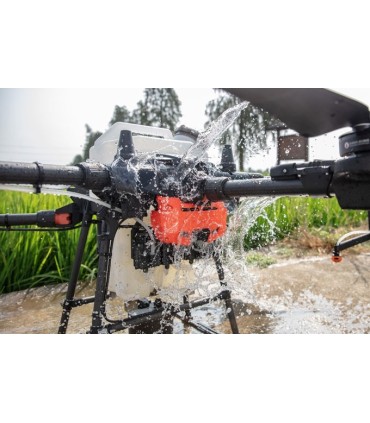

The DJI Agras T20 offers a compactness never seen on an agricultural drone. The arms fold down to limit its space requirement for transport and storage. The tank as well as the battery are interchangeable allowing you, if you wish, to double the components for an efficient workflow. The drone can thus be rinsed with high water thanks to its IP67 protection rating.

The DJI Agras T20 drone is equipped with eight nozzles and high-volume pumps to spray up to 6 L per minute. The nozzle outlet delivers droplets of ideal size and consistency for the treatment products you choose. The drone is equipped with a new four-channel electromagnetic flowmeter that monitors and distributes the product evenly between the different nozzles, for optimal processing.

Technical characteristics:

-Dimensions: Arms and propellers unfolded: 2509 x 2213 x 732 mm / Arms unfolded, propellers folded: 1795 x 1510 x 732 mm / Arms folded: 1100 x 570 x 732 mm

-Weight: 21.1kg (without battery)

-Diagonal distance: 1883 mm

-Duration of the hover: 15 minutes (with an 18,000 mAh battery and a take-off weight of 27.5 kg) / 10 minutes (with an 18,000 mAh battery and a take-off weight of 42.6 kg)

-Stationary accuracy: D-RTK on: +/- 10 cm horizontal and vertical / D-RTK off: +/- 0.6 m horizontal and +/- 0.3 m vertical (with radar module on: +/- 0.1 m)

-Load: 42.6 kg (standard take-off weight)

-Maximum speed: 10m/s (with strong GNSS signal)

-Operating temperature: From 0 to 40°C

-Maximum wind resistance: 8 m/s

-Operational efficiency: 12 hectares per hour

-Spray tank volume: 20 L

-Maximum spray flow: 6 L/min (with 8 XR11002VS nozzles and water)

-Maximum thrust-to-weight ratio: 1.70 (with a take-off weight of 47.5 kg)

Product content:

1 x DJI Agras T20 Drone

1 x Radio Control

1 x Radio control harness

1 x Charger

1 x WB37 Battery for radio control

1 x Charging Hub for WB37

1 x Power cable for Charging Hub

1 x USB Type-C Cable

1 x Power Adapter

1 x RTK Dongle

1 x 4G Dongle

1 x Propellers holder

1 x Set of tools and screws
