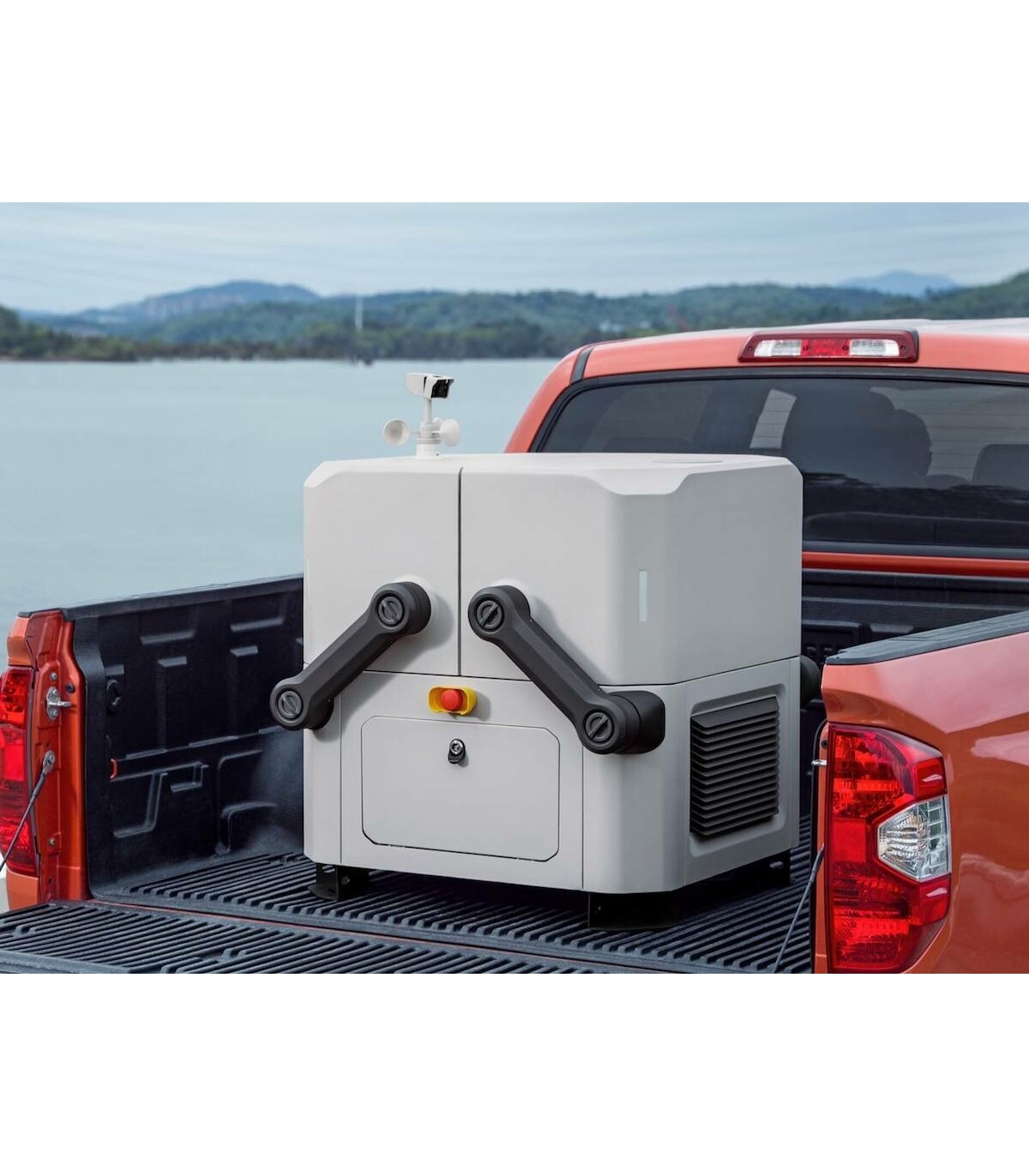

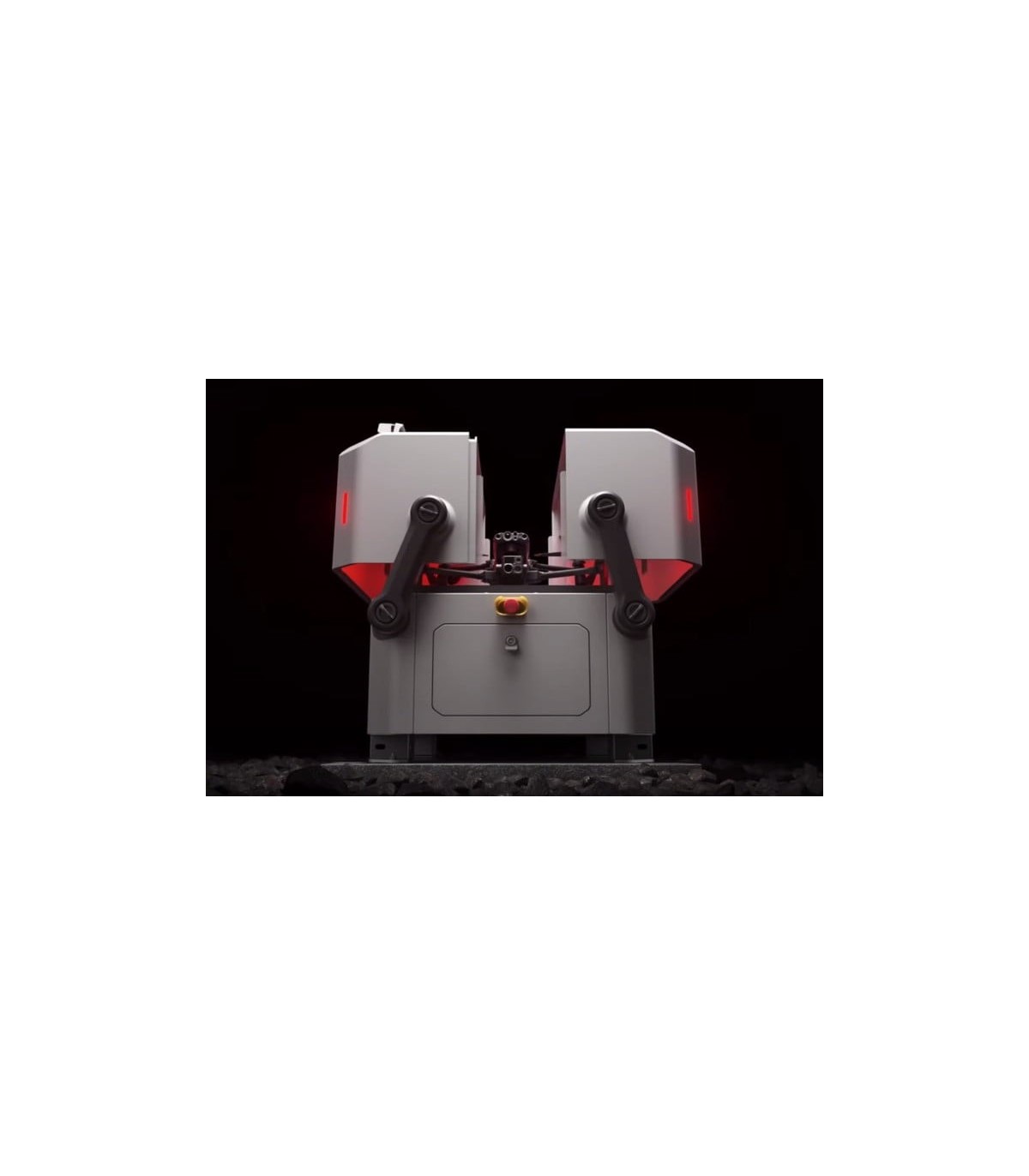

DJI DOCK Station for Matrix M30/M30T

The DJI DOCK is designed for operate 24/24, 7/7, day or night, rain or shine. It houses a Matrix 30 where it can land, recharge and take off

It executes scheduled missions thanks to DJI FlightHub 2

Product content:

• x1 DJI DOCK Station for M30/M30T Matrix

Technical Characteristics:

• Weight: 90 kg
• Dimension:

1. Open lid (weather station excluded): 1675 mm×895 mm×530 mm
2. Closed lid (weather station excluded): 805 mm×895 mm×840 mm

• Input voltage: 100-240 VAC, 47-63 Hz
• Maximum input power: 1500W
• Operating temperature: -35 to 50°C
• Protection rating: IP55
• Number of drones it can accommodate: 1 drone
• Maximum allowed landing wind speed: 12m/s
• Maximum operating altitude: 4,000 meters
• Maximum operating radius: 7,000 meters
• Reception frequency of the RTK base station satellite:
• Simultaneous reception :

1. GPS: L1 C/A, L2, L5
2. BeiDou2: B1l, B2l, B3l
3. BeiDou3: B1l, B1C, B2a, B3l
4. GLONASS: L1, L2
5. Galileo: E1, E5A, E5B

• RTK base station positioning accuracy:

1. Horizontal: 1 cm+1 ppm (RMS)
2. Vertical: 2 cm+1 ppm (RMS)

• Charging time: 25 minutes, Note: This only applies if the ambient temperature is 25°C and the device is charged from 10% to 90%.

• Lightning protection
