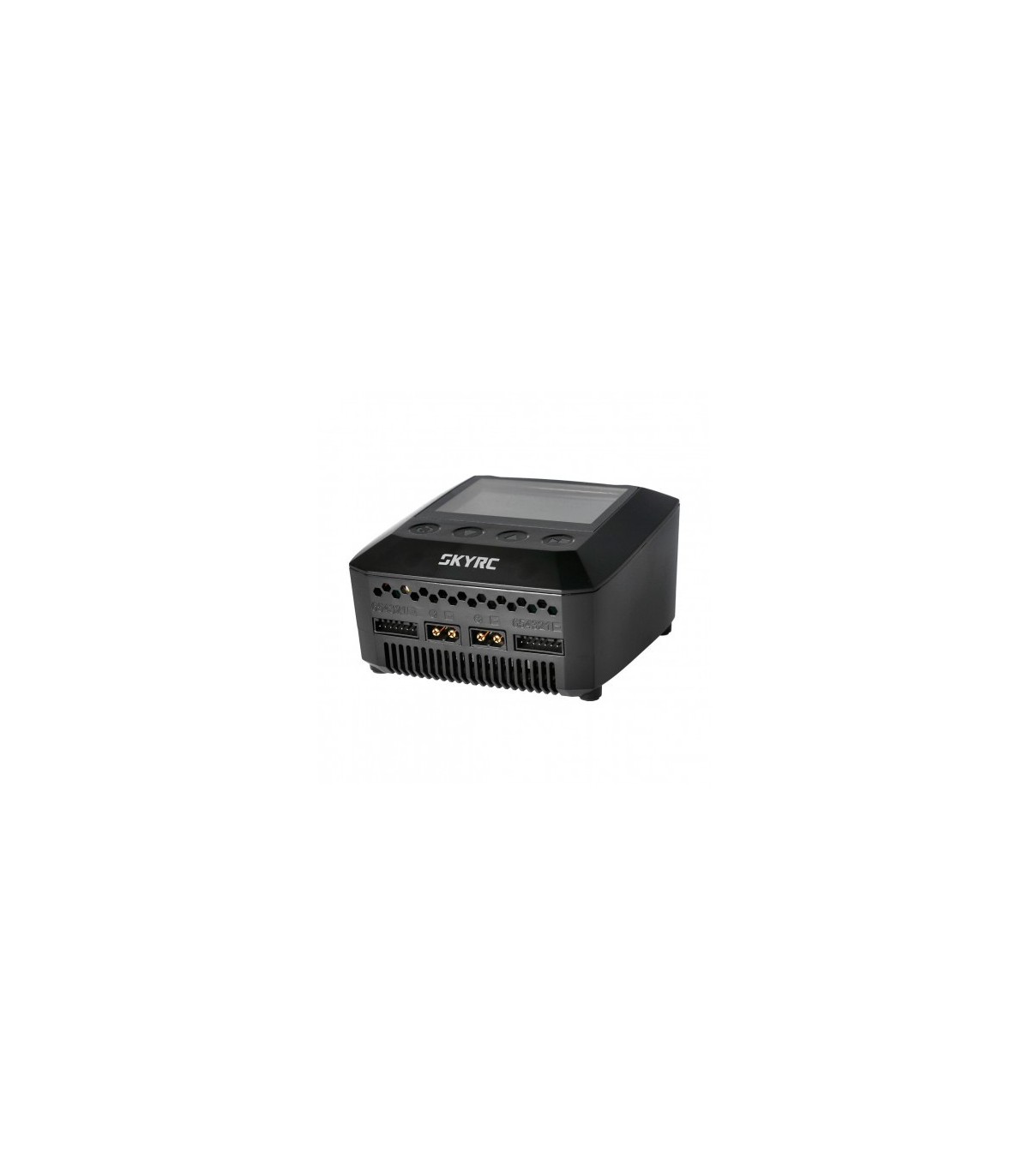

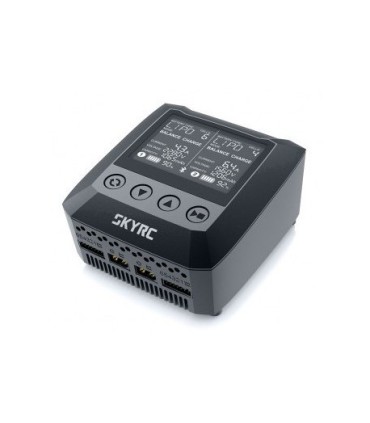

B6 Nano Duo SKYRC Charger
The use and user interface of the two-channel B6 Nano Duo charger have been optimized in order to offer regular use without difficulty. The user experience can be greatly extended thanks to the possibility of control by an application, more functions and advanced settings being accessible through this application.
Multiple protections are implemented, such as reverse polarity protection, charging time limitation, or charged capacity limitation.
Technical characteristics
-Mains supply voltage (alternating current): 100 to 240 V
-Display type: LCD
-Housing: Plastic
-Control: Four buttons
-Case dimensions: 127 x 115 x 71 mm
-Weight: 561 g
-External sockets: XH balancing sockets for 2 to 6 elements, battery charging sockets, AC input.
-Delta-Peak detection for NiMH/NiCd: 3-15 mV/element, default 4 mV/element.
-End of charge voltage: NiMH/NiCd: delta-peak detection
LiPo: 4.18-4.25V/element LiIon: 4.08-4.2V/element
LiFe: 3.58-3.7V/element LiHV: 4.25-4.35 V/element
-Maximum balancing current: 1,000 mA/element
-Voltage reading range: 0.1 to 26.1 V/element
-Number of elements per battery type: LiPo/LiIon/LiFe/LiHV: 1 to 6 elements
NiMH/NiCd: 1 to 15 elements
Lead: 2V to 20V
-Battery capacity range: NiMH/NiCd: 100-50000 mAh
LiPo/LiIon/LiFe/LiHV: 100-50000mAh
Lead: 100-50000mAh
-Charging current: 0.1 to 15.0A
-Safety stopwatch: 1-720 minutes/ OFF
-Charging power: 200W (100W x 2)
-Discharge current: 0.1 to 3.0A
-Discharge end voltage: NiMH/NiCd: 0.1 to 1.1 V/element
LiPo: 3.0-3.3V/element LiIon: 2.9-3.2V/element
LiFe: 2.6-2.9V/element LiHV: 3.1-3.4V/element
Pb: 1.8V
-Discharge power: 8W
-Number of elements that can be balanced: 2 to 6 elements
-Charging methods: CC/CV for Lithium and lead-acid batteries
-Delta-peak detection for NiMH and NiCd
