8mm diam centering pins for lamination (per 10 pairs)
Centering pins for lamination (per 10 pairs)
€13.99
(tax incl.)
Love0
Add to compare0
Add to wishlist

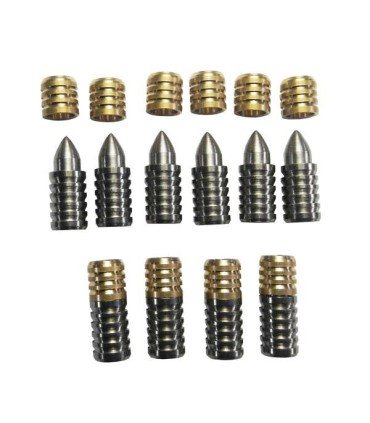

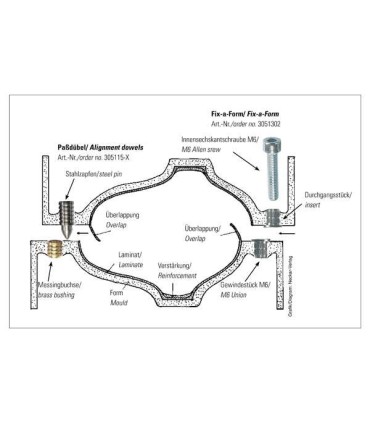

These centering pins (or studs) consist of a brass bushing and a steel pin. They are placed along the flange of the mold and ensure a good fit of the mold halves.
The outer diameter of the brass bushing is 8 mm and that of the lower cylindrical part of the steel dowel is 7.95mm. The length of the bushing is 8.20mm, the total length (bushing + dowel) is 20.65mm. The inner diameter of the brass bushing is 5.97mm, the outer diameter of the steel dowel is 5.95mm.
Comments (0)
No customer reviews for the moment.
