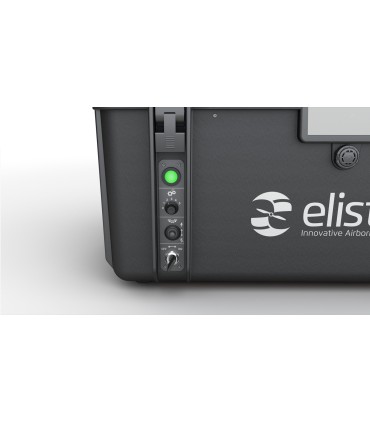

ELISTAIR SafeT Station-Ground

The SafeT ELISTAIR is a station-soil that feeds your drone via a cable, thus making it captive and enduring.

Request a quote

Read moreShow less

Notify me when available

Love0

Add to compare0

Add to wishlist

Description

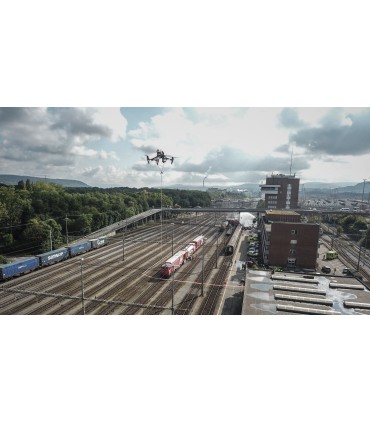

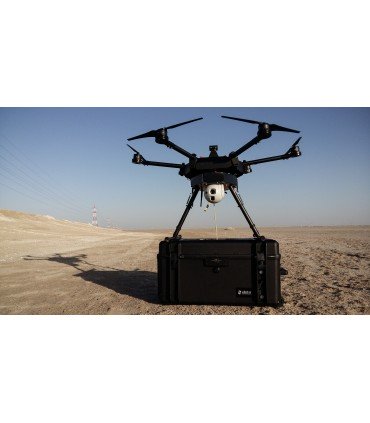

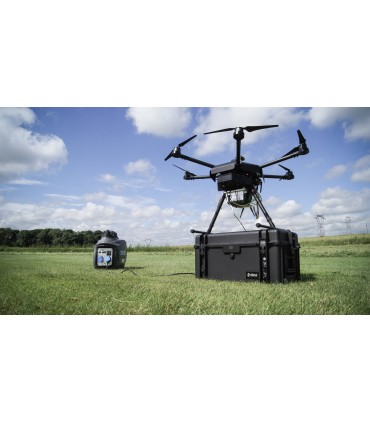

Unique product and already well known, from the French savoir-faire in the drone professional. This product allows you to transform a drone classic drone tethered, in particular for reasons of safety and/or autonomy. It allows you to stay in flight for several hours, for example for surveillance missions. The drone turns into a turret video powered non-stop by the ground, all by fetching the data via the same " umbilical ".

Examples of drones supported : DJI S900, DJI S100, Matrix 600, Yuneec H920, ...

Technical characteristics :

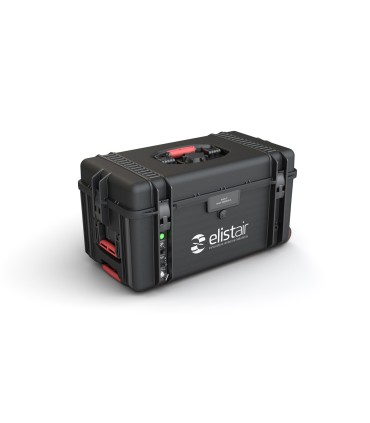

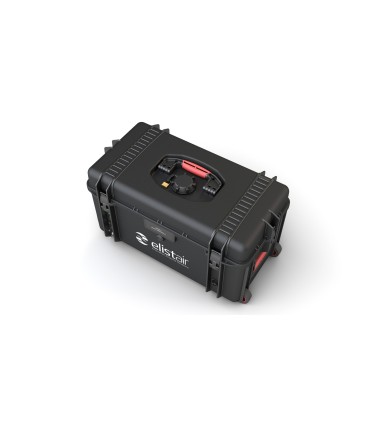

Ground Station
Dimensions	680 x 380 x 360 mm
Weight	24 kg
Micro-Tether Management	- 10 presets - Smart pre-programmed laws - Reset function
Power Input	220-250 VAC, 50-60 Hz, 3 kW min.
Built-in protection	Electronic crow bar
Connectivity	T-Monitor Android application (built-in WI-FI)
Carriage	3 handles. 1 hand trolley.

Output voltage	22-25 VDC
Power Drone connectors	AS150 Red Female XT150 Black Female
Cable minimum section	6 mm2 (1200W to 1500W) 10 mm2 (1800W)
Safety battery connectors	XT90 Male (to be connected to XT90 female with anti-spark)
Safety Switch	Included

Micro-Tether
Tensile strength	150 daN
Diameter	3.5 mm 16g/m 3.8 mm 22g/m
Available Weights	16g/m 22 g/m
Available Lengths	100m / 330 ft 80 m / 260 ft 60 m / 195 feet
Air Module
Weight	670 g
Dimensions	150,75x88,5x44 mm

Main Interfaces Power	Ground Station	Input	Cable – E-Type		220-250 VAC 50-60 Hz
Power	Air Module	Output	AS150 Red Female XT150 black Female		[22-25] VDC 1 800 W max continuous
Power	Air Battery Module	Input		XT90 Male (with anti-spark)
Data	Air Module	Input	RJ45 Ethernet		80 Mb/s
Data	Air Station	Output	RJ45 Ethernet		80 Mb/s
