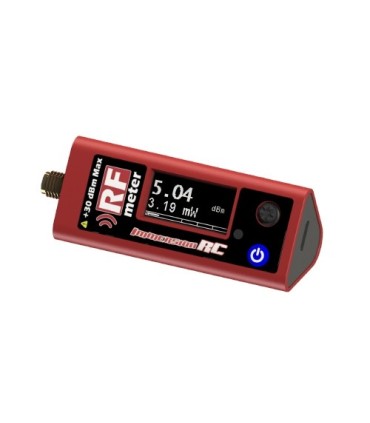

The RF Power Meter V2 allows to measure the emission power of video transmitters.
This meter will allow you to control the frequencies 35, 72, 433, 868, 915, 1200, 2400, 5600-6000Mhz in increments of 50 Mhz in order to avoid interference between different drivers. It will also allow you to test the effectiveness of your antenna and compare them!

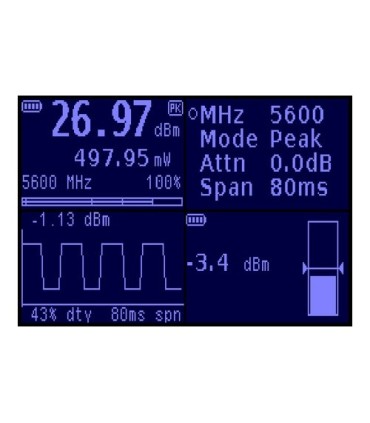

This system works without contact, through a dipole antenna and have 8h of battery life with automatic shut off after 5 minutes if you forget to turn it off. Its OLED screen 128x64 pixels will show you the different measurements : dBm, mW, Mhz... in the menu with the joystick.
Charging via USB port

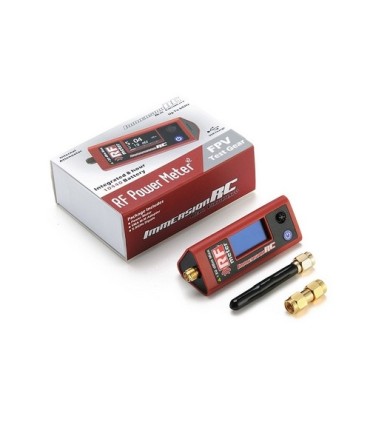

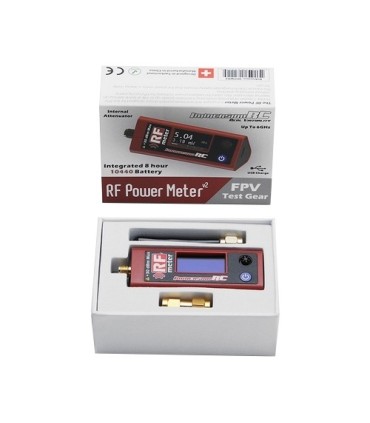

Content of the product :
1 x Power Meter V2 with Li-Ion 10440
1 x Adapter (male to male SMA
1 x Antenna 5.8 Ghz
Technical characteristics :
- battery : 3.7 V 104440 600mAh
- autonomy: 8 hours
frequencies analyzed: 35, 72, 433, 1200, 2400, 5600-6000MHz by 50MHz
- gain: 2 dbi
- screen resolution: 128x64 OLED, monochrome
- connectors: SMA with adapter
