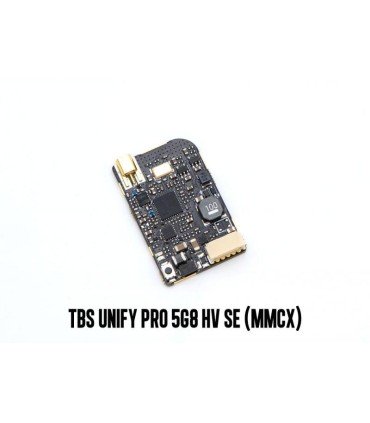

TBS Unify Pro 5G8 HV (MMCX)

Transmitter video 5G8 in TBS, the Unify Pro HV with MMCX connector.

Read moreShow less
€45.90 (tax incl.)
Rupture de stock
Notify me when available
Love0
Add to compare0
Add to wishlist
Description

New version of the best VTX at TBS? compatible with 6S, with 5V output for your camera FPV. Compatible fully with SmartAudio. Additional features include TBS CleanSwitch and TBS PitMode.Antenna Connector: MMCX

PITMODE - MADE TO RACE

Zero interference, even under tension, it is now possible ! If you have already repaired a quad bike during a race, you know the frustrations of not being able to turn on and test your system. With PitMode, we will reduce the power output to the strict minimum (a lower value for mW-digit) and switch to the frequencies unused by the race organisers to allow you to turn on your quad and still see the image! You have a few meters of scope to put your quad to the test before placing it on the starting grid. In association with CleanSwitch, you can activate as soon as your channel is available without interrupting any of the active channels.

SMARTAUDIO - FULL CONTROL

The technology SmartAudio provides a control UART and I2C for all of your video transmitter. Parameters such as the output power, the bands, channels and frequency can be controlled freely. This allows the control of the remote channel directly from a smart device (GER Crossfire, Bluetooth module or WiFi required external), your radio (GER Crossfire with remote control compatible with TBS Tango or OpenTX required) or OSD (for example, TBS CORE PRO). With all of these available options, you should find something that fits your bill. With CleanSwitch, the sky is the limit ... jump between channels without interfering with the other drivers, create frequencies of relief / emergency, power settings, VTx overall made by the race organizers or other intelligent systems to streamline and improve the management of the race a possibility!

CLEANSWITCH - CORDIAL DISCUSSIONS FRIENDLY

CleanSwitch is a technology developed by TBS, which guarantees that your video transmitter is free of interference during power-up or when changing channel. All video transmitters current slide on the entire group while being lit, which often causes flickering and strong interference with the waves, regardless of the channel chosen video. TBS CleanSwitch allows you to switch on and change the channel while your friends are in the air, without any external interference. CleanSwitch is adapted to the course and to the pilot.

SAY NO! DIPSWITCHES

Even if the learning binary was a mind game fun, in practice, a video transmitter single button or controlled by OSD is just so much easier to use. Gone are the days of video cards issuing, passages inadvertently on the channels of the people or of the differences between the frequencies of your glasses and your video transmitters..

Features:

- Operating voltage: 2S - 6S

- Supply current: up to 600mA

- Operating temperature: monitor the normal air flow

- Frequency of the audio carrier: 6.5 MHz

- Impedance video input: 75 Ohm Weight: 4.4 g (PCB only)

- Input connector: JST GH 5pin Antenna Connector: MMCX

- Video Format: NTSC / PAL

- Output power: 13dBm (25mW), 23dBm (200mW), 27dBm (500mW), 30dBm (1W *)

- Size: 31 x 23 x 5 (mm)

Content of the product:

- 1 x TBS Unify Pro 5G8 HV (MMCX)

- 1 x Transmitter-video / Camera / power Cable

- 1 x TBS UNIFY Pro Manual Specifications

- 1 x TBS SmartAudio
