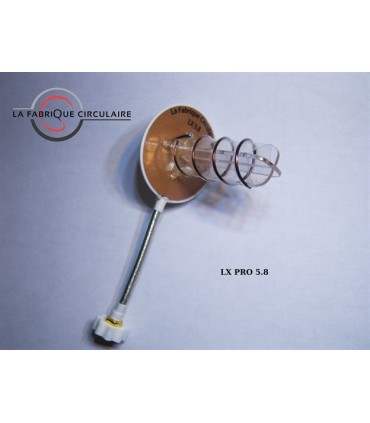

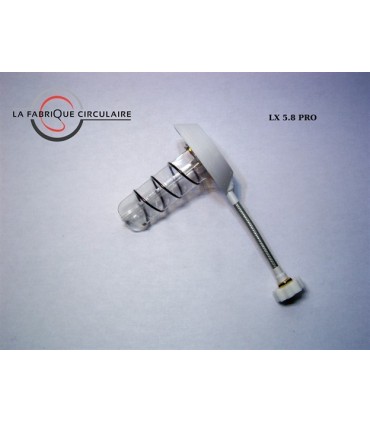

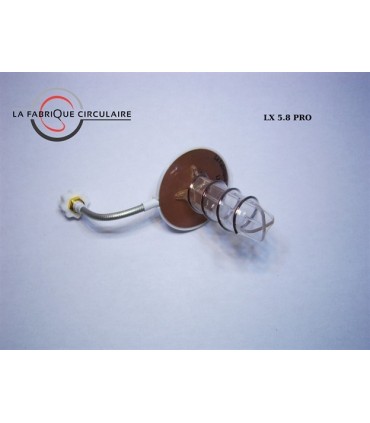

Antenna LX Pro Manufactures Circular 5.8 GHz RHCP
The antenna LX PRO is the antenna that is ideal for your receivers. Directive with a coverage of 90°, usable (but a maximum gain at 60°), it is still omnidirectional at short distance (50-100m).
€45.00
(tax incl.)
Love0
Add to compare0
Add to wishlist
This directional antenna has circular polarization (RHCP) will allow you to improve the reception of your video signal.
To be used preferably in combination on your RX diversity with a second antenna identical to cover a range of 180°. Or in combination with an omni-directional antenna with circular polarization for receive on 360° in focusing on a direction for greater range.
Features LX PRO 5.8 GHz
-3,5 Towers
-Bandwidth : 5500 to 6000 MHz
-Gain : 8,8 dBi
-VSWR<1.2 (RL<-20dB)
-Circular polarization type RHCP
-Coverage : 60° (90° usable)
-Coax semi-rigid 18 GHz
-Dimensions : height : 11 cm
diameter : 5.6 cm
depth : 6.5 cm
-Weight : 22 g
-Use VRX
-Connector : SMA
