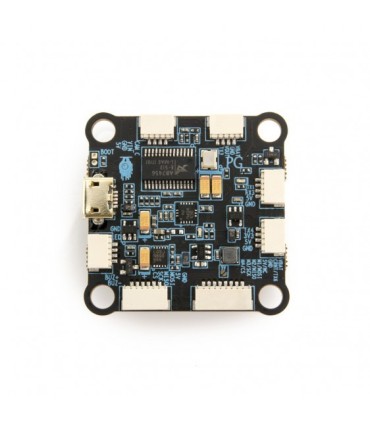

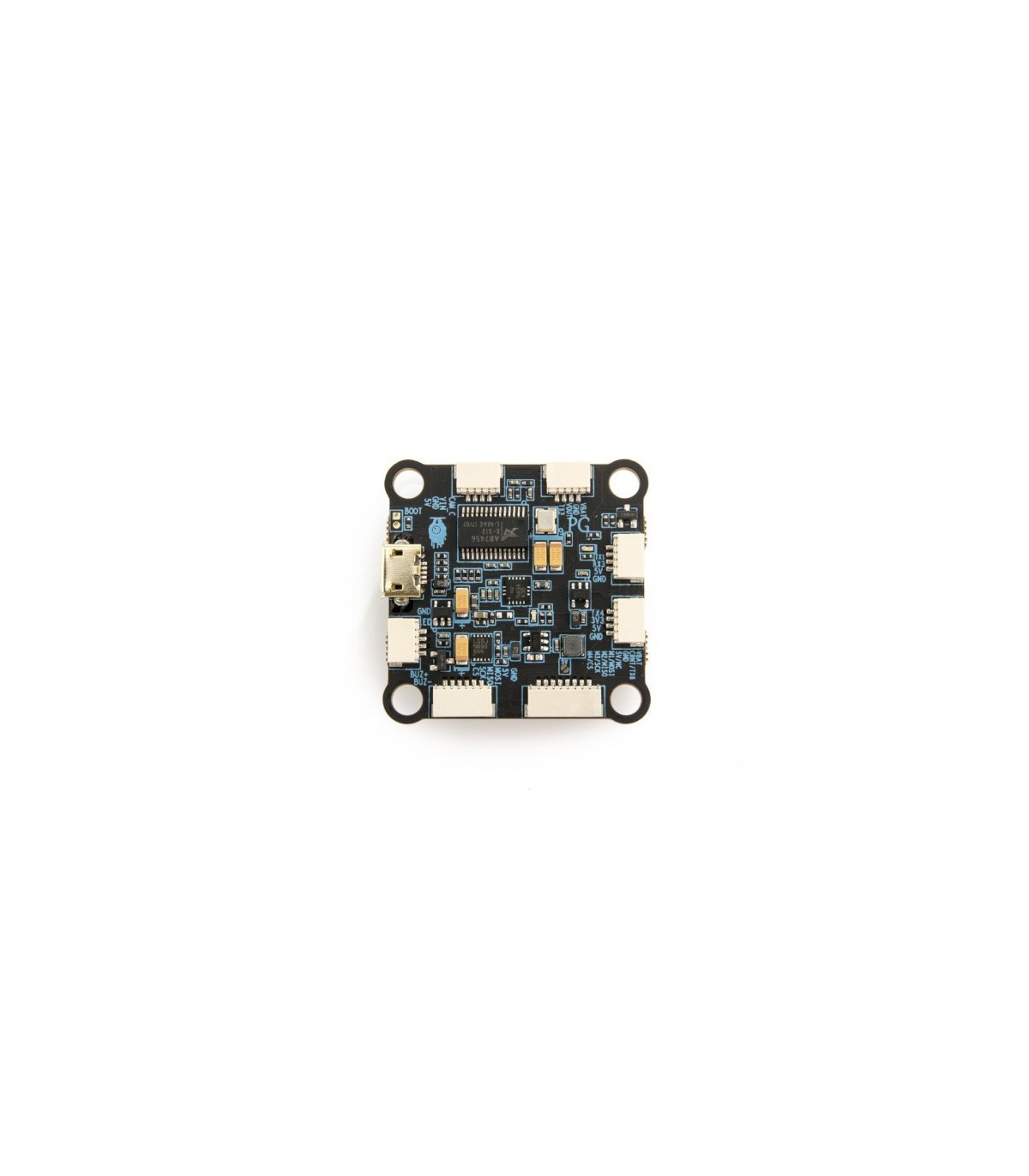

FlightOne SKITZO RevoltOSD Flight Controller

Reminder : upon receipt of your item, please connect it to USB and calibrate the accelerometer before you start soldering.

Building on the success of the Revolt, FlightOne has created the next generation of flight controllers, having added all of the features requested by the users, as well as new ideas.

The assembly now takes 10 times less time, because of the connector system very easy to use. However, you always have the possibility of making the welds, if you want. The flight controller accepts up to 6s, with a voltage which is filtered to give you the best performance. FlightOne has even included an OSD and a camera on the controller, vol.

The flight controller FlightOne RevoltOSD is one of the flight controllers the most advanced and most efficient ever designed. The RevoltOSD uses a strong PUF F405, accompanied by the gyroscope and High-Speed Invensense 20602, which allows him to take full advantage of the code FlightOne One to operate at 32 kHz for best performance.

The special edition SKITZO is available in black for a stylish look and blends perfectly with the Bolt32 FlightOne SKITZO.

Technical characteristics:

• Easy mounting
• Power Lipo up to 6s
• Advanced filtering
• Plug and Play
• OSD built-in internal
• Driver LED WS2812b programmable LED
• SBUS Inversion
• Gyroscope high-speed, 32 kHz, noise threshold, the lowest, and high sensitivity of the gyro
• FrSky Taranis, Spektrum, Futaba, JR, IBus, Sbus, and other media radio
• Driver integrated buzzer
• Voltage and current pins ADC for a comprehensive monitoring of the voltage and current
• Full support of the télémetrie
• ESC flashing
• Voltage of 3.3 V séléctionnable
• 3 ports UARTs
• Bluetooth add-on possible
• Processor F4
• 16mb flash memory
• Extension of GPS possible
• Dimensions: 36mm x 36mm
• Mounting hole: 30.5 mm
• Weight: 6 gr
• easily connectable to the Bolt FlightOne thanks to the special connectors
• Fast assembly by using the connector system
