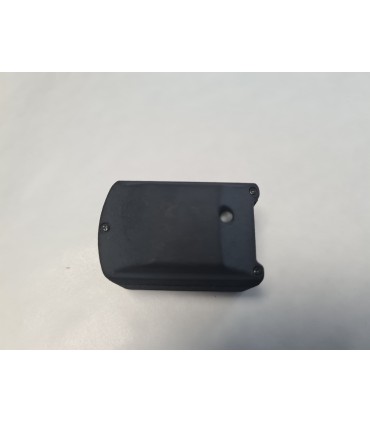

Autonomous electronic identification module for drone

In accordance with the decree of December 27, 2019, all aeromodels weighing more than 800 grams must be equipped with a electronic reporting device. This tag are in accordance with the order and make it possible to transmit the positioning data of the aircraft and its unique identifier number over the 2.4GHz WiFi band.

The GPS beacon is compatible with all brands of drones, so long as there is the necessary space to accommodate and integrate it: DJI Phantoms; DJI Matrices; DJI Inspires; Autel Robotics; Yuneec; …

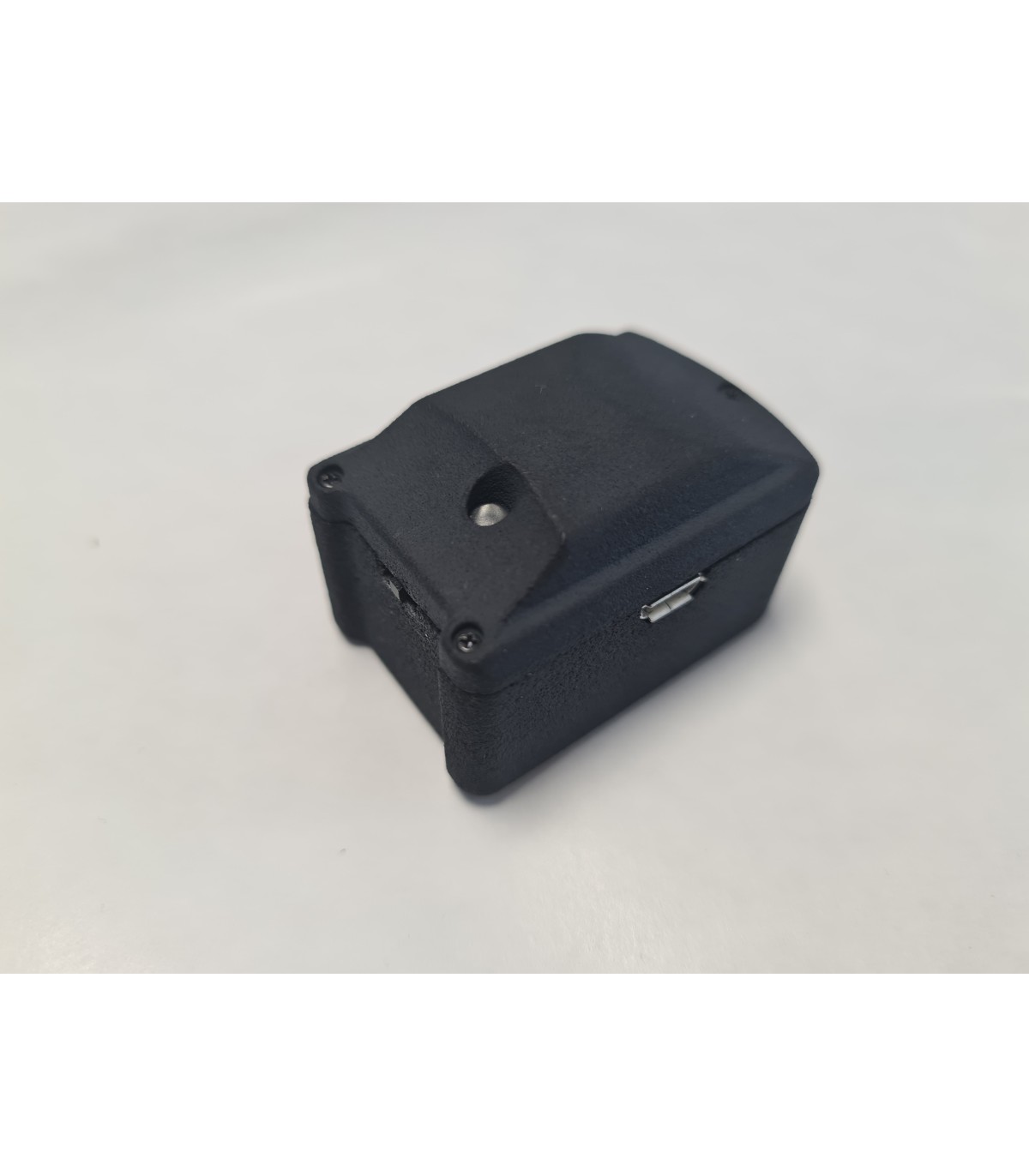

The GPS version can be installed on all drone models, whatever the type of autopilots. The beacon is equipped with its own GPS and has an internal USB rechargeable battery (built-in micro USB socket)

Technical specifications:

- Dimension: 44 x 29 x 29mm

- Mass : 34g

- Autonomy : about 6 hours

- Scope : about 1 km

- Software Version : v2.0

GPS Features :

High sensitivity: -165dBm in tracking, -148dBm in acquisition
Band : L1
Channel: 22 (tracking), 66 (acquisition)
Horizontal accuracy: 2.5 meters CEP
Timestamp accuracy: 1PPS out: 10ns
Max altitude: 1800m
Max speed: 515m/s
Max acceleration: 4G
Operating temperature -40°C to +85°C
Average time of passage in 3Dfix: 40-45 seconds (cold)
