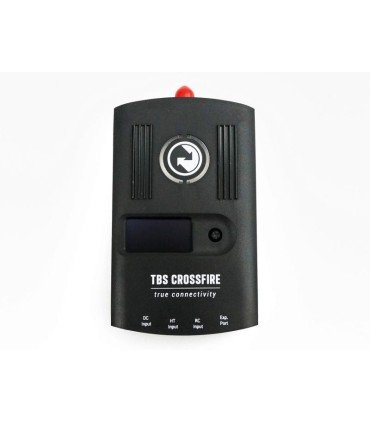

Bundle transmitter receiver Longrange Crossfire TBS

This bundle Crossfire Team Black Sheep offers you a complete set to transform your remote control into a powerful long-range. The reputation of TBS has made on his specialty, namely, long distance flights...With this system, it touches the heart of the know-how GER.

As with any RC system that is modern, this product integrates the telemetry. The two-way communication opens up new possibilities. Streaming MAVLink to your smart device, update your firmware, to the setting of your channel video transmitter, or to adjust the settings of the flight controller such as PID. The bandwidth adaptively control the transmission speed/optimize for a range of phenomenal. The protocol "CRSF" is a proprietary communication protocol TBS between the issuer Crossfire and its receptor. It provides ultra-low latency with incredible bandwidth (3x faster, with 6x more data than any protocol comparable!). The GER Crossfire is the logical choice for all those who use the platforms Betaflight, KiSS or ArduPilot / Pixhawk.

Technical characteristics:

-Frequency bands: 868MHz (EU, Russia) / 915MHz (USA, Asia, Australia)

-Supply voltage: 3.5 - 13V

-Power consumption: 1.1 W (@10mW) - 3.2 W (@2000mW)

-Dimensions: 55 x 89 x 15 mm

-Mass : 76g

Contents of the kit

-Issuer GER Crossfire

-Adapter JR GER Crossfire

-Antenna TX GER Crossfire

-Cable Futaba for Crossfire

-Cable Graupner for Crossfire

-Crossfire PWM Pigtail

-Crossfire cable JST to XT30

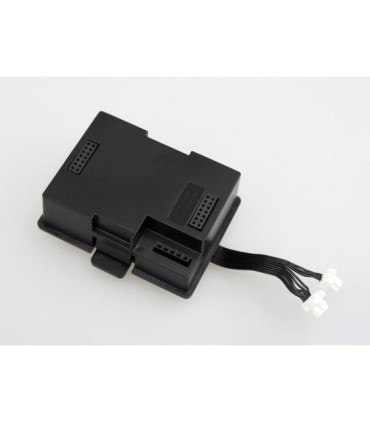

-Receiver GER Crossfire 8Ch Diversity

-Antenna RX GER Crossfire (2pcs)

-TSB splitter (one input to three output)

-Cable TSB (20cm)
