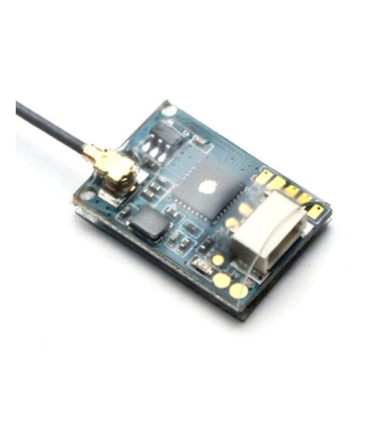

This FS-A8S V2 2.4GHz PPM/SBUS 8/18 way mini receiver is made by Flysky/Eachine
The FS-A8S V2 is an 8 to 18-way receiver. It measures 20 x 14 x 5.3 mm for a weight of 1.2g which makes it an ideal receiver for racer drones, where space and weight are counted.
It uses the AFHDS 2A protocol (Automatic Frequency Hopping Digital System) renowned for its very high transmission stability.
The FS-A8S V2 receiver will be suitable for many radio controls: Turnigy, Flysky and all those that use the PPM, IBUS and S.BUS protocols.
- Dimensions: 20 x 14 x 5.3mm
- Frequency: 2.4 GHz
- Sensitivity -92 dBm
- Diversity: No
- Power Supply: 4.0 to 8.4V
- GFSK Modulation
- Tracks 8 to 18 depending on the mode used
- Range: > to 300m
- PPM/i-BUS/S.BUS connectivity
- Compatibility: Flysky, Turnigy Evolution, Turnigy i6S, Turnigy i10, compatible radios PPM/S.BUS
Supports: PPM, I-BUS, S.BUS
